Series Reactor for High Voltage Condensor





PRODUCT SPECIFICATION



Capacity 0.6KVA ~ 300KVA
Voltage High Voltage
Frequency 50Hz / 60Hz
Insulation Grade A / B / F / H
Type DRY / MOLD / OIL
Reactance 6%, 8%, 13%
고압콘덴서직렬리액터

Series Reactor for High Voltage Condenser (Reactance 6%), 60Hz

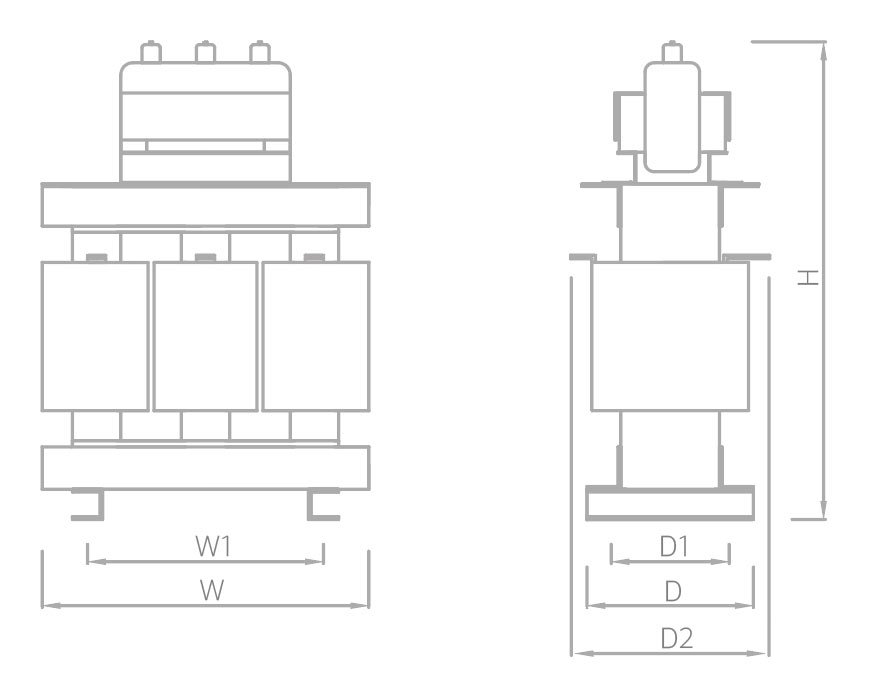

Capacity Condenser Capacity W W1 (W-hole) D D1 (D-hole)  –D2 – H Attachment hole
0.6 10 340 225 220 190 250 580 11Ø
0.9 15 340 225 220 190 250 580 11Ø
1.2 20 340 225 220 190 255 580 11Ø
1.5 25 340 225 220 190 260 580 11Ø
1.8 30 340 225 220 190 265 580 11Ø
2.4 40 340 225 220 190 275 580 11Ø
3 50 370 225 220 190 280 610 11Ø
3.6 60 370 225 220 190 290 610 11Ø
4.2 70 370 225 220 190 310 610 11Ø
4.5 75 400 225 220 190 310 610 11Ø
6 100 400 225 220 190 320 665 11Ø
9 150 460 250 250 220 330 725 13Ø
12 200 460 250 250 220 340 725 13Ø
15 250 460 250 250 220 350 725 13Ø
18 300 500 365 250 220 360 775 13Ø
24 400 500 365 250 220 450 795 13Ø
30 500 510 370 270 240 450 795 13Ø
60 1000 630 370 310 280 490 870 13Ø
