Low Voltage 3P Dry Compound Transformer





PRODUCT SPECIFICATION



Constant  3Ø
Winding Single winding / Compound / Multi-Winding
Capacity  50VA ~ 1000KVA
Voltage Low Voltage / High Voltage
Frequency  50Hz / 60Hz
Insulation Grade   A / B / F / H
Type  DRY / MOLD / OIL
저압-3P-건식복권트랜스

Low Voltage 3P Dry Compound Transformer (60Hz)

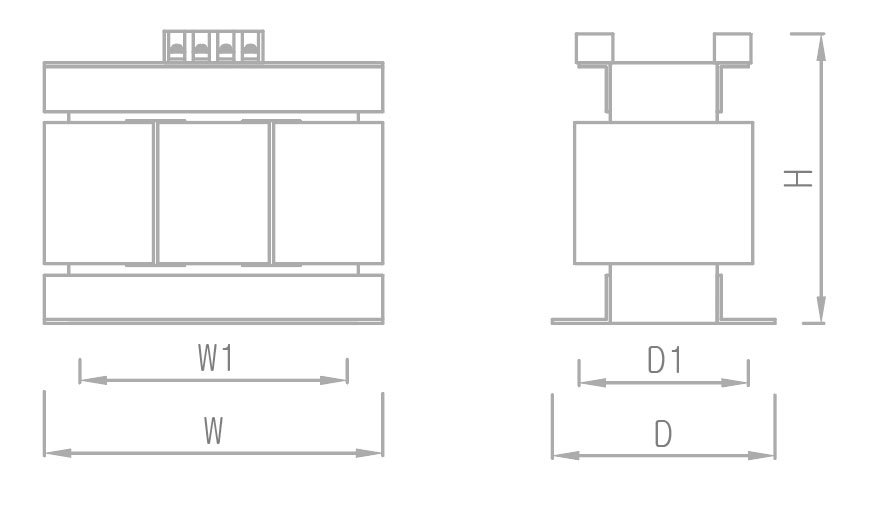

Model Capa (kVA) W W1 (W-hole) D D1 (D-hole) H Attachment hole
TA3L- 0.05 130 100 115 130 9Ø
TA3L- 0.1 130 100 115 130 9Ø
TA3L- 0.3 160 100 135 140 9Ø
TA3L- 0.5 200 170 130 170 9Ø
TA3L- 1 200 170 155 170 9Ø
TA3L- 2 240 210 155 200 9Ø
TA3L- 3 270 230 190 230 11Ø
TA3L- 5 300 260 190 250 11Ø
TA3L- 7.5 330 290 210 280 11Ø
TA3L- 10 360 320 230 310 11Ø
TA3L- 15 380 340 240 330 11Ø
TA3L- 20 440 400 280 380 13Ø
TA3L- 30 480 440 310 420 13Ø
TA3L- 50 480 400 300 480 13Ø
TA3L- 75 540 450 335 510 13Ø
TA3L- 100 600 500 375 580 13Ø
